API 6A BX169 RTJ Ring Gasket: Sealing Principles, Advantages, and Industrial Applications

1. What Is an API 6A BX169 RTJ Ring Gasket?

An RTJ (Ring Type Joint) gasket is a metallic gasket installed in a specially machined groove between compatible flanges. Unlike conventional flat gaskets, an RTJ gasket relies on controlled metal-to-metal contact between its sealing surfaces and the corresponding flange grooves.

The BX169 is a specific ring gasket designation associated with the BX-style sealing system used on compatible API 6BX flanges. The product discussed here is identified as a 5-1/8-inch BX169 gasket in SS316 stainless steel, with a stated 10,000 psi pressure rating. Actual compatibility and allowable operating pressure must be verified against the complete flange and equipment specifications.

One distinguishing feature of the BX design is its pressure-energized sealing mechanism. When the connection is assembled correctly, internal pressure can help increase sealing contact between the gasket and the mating flange grooves. A pressure-passage hole through the ring also helps equalize pressure that could otherwise become trapped in the groove.

These design characteristics make BX ring gaskets an important sealing option for demanding oilfield connections.

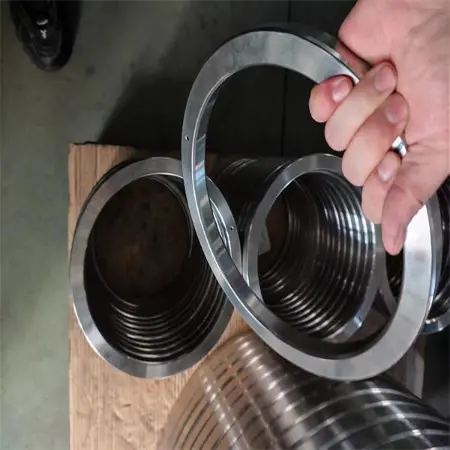

2. Key Advantages of the API 6A BX169 RTJ Ring Gasket

2.1 Pressure-Energized Sealing Performance

One of the main advantages of a BX169 RTJ ring gasket is its pressure-energized design. As system pressure increases within the intended operating range, the sealing mechanism can help maintain contact between the ring and the flange grooves.

This design is valuable in high-pressure oil and gas equipment, where connection integrity is critical to operational safety and reliability.

However, pressure-energized sealing does not eliminate the need for correct installation. Flange compatibility, groove condition, gasket dimensions, material hardness, and the specified assembly procedure all affect sealing performance.

2.2 Reliable Metal-to-Metal Sealing

The BX169 gasket forms a metallic seal through controlled contact with compatible flange grooves. This makes it suitable for applications where a conventional soft gasket may not meet the connection's design requirements.

Precision machining helps ensure that the ring conforms to the specified profile and dimensional tolerances. Properly manufactured sealing surfaces support consistent contact and help reduce the risk of leakage caused by dimensional mismatch or surface defects.

For critical equipment, dimensional inspection and sealing-surface verification should be included in the quality-control process.

2.3 SS316 Stainless Steel for Corrosion Resistance

The SS316 version offers the corrosion-resistance characteristics associated with molybdenum-containing austenitic stainless steel. Compared with 304 stainless steel, 316 generally provides improved resistance to chloride-related pitting and certain other corrosive environments.

This makes SS316 a useful material option for selected oilfield and industrial environments where corrosion resistance is an important consideration.

Nevertheless, stainless steel selection must account for the actual fluid composition, chloride concentration, temperature, pressure, and applicable service requirements. SS316 should not automatically be considered suitable for every sour-service or H₂S-containing environment. Material qualification and compliance with the applicable sour-service requirements must be confirmed before use.

2.4 Pressure-Passage Hole Design

A pressure-passage hole is an important feature of the BX ring gasket. It provides a passage intended to help equalize pressure that could otherwise become trapped in the flange groove.

This feature supports the intended pressure-management design of the BX sealing system. The hole must be manufactured according to the applicable drawing or standard requirements and must not be obstructed or altered without engineering approval.

2.5 Precision Dimensions and Material Verification

A ring gasket must match its mating flange in profile, dimensions, and material requirements. Even a high-quality gasket may fail to seal properly if the ring number is incorrect or the sealing surfaces are damaged.

For the BX169, relevant quality checks may include:

Verification of the ring designation and compatible flange configuration

Dimensional inspection against the applicable BX169 drawing or standard

Material identification and heat or lot traceability

Hardness verification against specified requirements

Visual inspection of the sealing surfaces and pressure-passage hole

Positive Material Identification (PMI), when required

Material test reports and other documentation specified in the purchase order

These checks help buyers verify product conformity before the gasket is installed in critical equipment.

3. Typical Applications of BX169 RTJ Ring Gaskets

• Wellhead Equipment

Wellhead assemblies require dependable sealing between compatible pressure-containing components. A correctly specified BX169 gasket can support the integrity of applicable API 6BX flange connections used in wellhead systems.

• Christmas Tree Assemblies and Valves

Christmas trees control production from oil and gas wells and contain pressure-bearing connections. Suitable metallic ring gaskets help maintain sealing integrity when installed in accordance with the equipment manufacturer's requirements.

• Blowout Preventer (BOP) Systems

Blowout preventer equipment is used to control well pressure during drilling and related operations. Where a compatible BX-style connection is specified, the appropriate ring gasket contributes to the sealing performance of the assembly.

• Choke and Kill Manifolds

Choke and kill manifolds handle demanding pressure-control operations. Gasket selection must consider the specified flange configuration, operating pressure, temperature, fluid compatibility, and service conditions.

• Oil and Gas Flowline Equipment

Selected high-pressure piping and flowline equipment may use metallic ring gaskets where the connection design calls for a BX-style sealing system. Compatibility must be confirmed for each application rather than assumed from nominal size alone.

4. BX169 vs. Other RTJ Ring Gaskets

The critical distinction is compatibility. A BX gasket must not be substituted for an R or RX gasket simply because the nominal size appears similar. API 6A distinguishes these gasket types and their corresponding flange grooves.

For reliable procurement, buyers should confirm the ring number, flange type, nominal size, pressure rating, material, and applicable standard before placing an order.

Contact now

5. How to Select the Right BX169 Ring Gasket

Selecting a suitable BX169 RTJ gasket requires more than checking its material or nominal size. The following factors should be reviewed before purchasing.

• Flange compatibility: Confirm that the mating connection is designed for a BX169 ring and the corresponding API 6BX groove.
• Pressure and temperature: Verify the equipment's rated conditions and ensure that the complete flange connection and gasket specification are suitable for the intended service.
• Material grade: Select SS316 or another specified material according to the process medium, corrosion risks, temperature, and project requirements.
• Hardness compatibility: The gasket hardness must satisfy the applicable requirements relative to the mating flange groove. An unsuitable hardness relationship can affect proper sealing and damage risk.
• Dimensions and surface condition: Confirm the ring profile, dimensions, tolerances, and sealing-surface finish against the applicable specification.
• Documentation and traceability: Specify the required material certificates, dimensional inspection records, hardness results, PMI, and other quality documents in the purchase order.
• Sour-service requirements: If the application involves H₂S, verify that the selected material and finished component meet the applicable sour-service requirements. The SS316 designation alone does not establish sour-service suitability.

6. Installation and Maintenance Considerations

Correct installation is essential for the performance of a BX169 RTJ ring gasket.

Before assembly, inspect the flange grooves for corrosion, scratches, dents, contamination, and other damage that could compromise sealing. Check the gasket for deformation or damage during handling, and verify its designation and dimensions.

Install only the specified ring gasket in the matching flange groove. Follow the equipment manufacturer's assembly procedure, including the prescribed bolt-tightening sequence, lubrication requirements, and tightening method where applicable.

RTJ gaskets are designed to undergo controlled deformation during initial assembly. For this reason, a previously installed ring gasket should not be reused unless an applicable, explicitly approved procedure permits it. API 6A specifies that ring gaskets are not to be reused.

During maintenance, examine the mating flange grooves and replace damaged components as necessary. Proper storage and handling also help protect the gasket's sealing surfaces before installation.

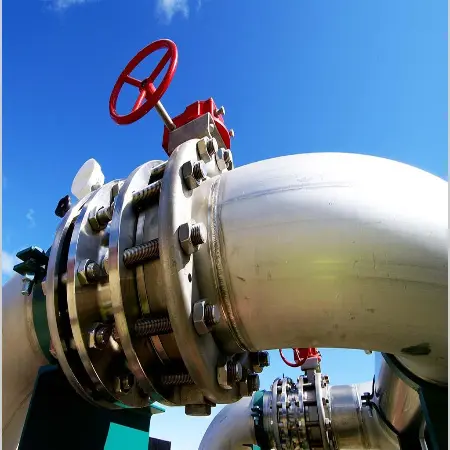

7. Why Choose a Quality-Controlled BX169 RTJ Ring Gasket?

For oilfield equipment, gasket quality directly affects the reliability of the complete flange connection. Buyers should prioritize verified dimensions, material traceability, appropriate hardness, and conformity with the applicable product specification rather than relying solely on a product name or nominal pressure rating.

The API 6A BX169 RTJ Ring Gasket listed by Manufacturerpipe is offered in SS316 stainless steel, with dimensional, hardness, and material verification available according to project requirements. Buyers should confirm the precise material grade, applicable standard edition, pressure rating, documentation, and service suitability when requesting a quotation.

A clearly defined purchase specification helps reduce ordering errors and ensures that the supplied gasket matches the intended equipment and operating conditions.

FAQ

• What does BX169 mean on an RTJ ring gasket?

BX169 identifies a specific BX-style ring gasket designation. The gasket must match the corresponding flange groove and equipment specification; it is not interchangeable with R or RX rings.

• What material is used for the BX169 RTJ ring gasket?

The product page identifies an SS316 stainless steel version. Other materials may be available from suppliers, but the actual grade should be confirmed against the purchase order and material documentation.

• What is the pressure rating of the API 6A BX169 gasket?

The referenced product listing states a 10,000 psi pressure rating. The allowable operating pressure depends on the complete flange connection, equipment rating, temperature, and applicable design requirements.

• Can a BX169 gasket be used for sour-gas service?

Suitability depends on the material specification, H₂S exposure, environmental conditions, and applicable sour-service requirements. SS316 alone does not guarantee compliance. Confirm the required material qualification before ordering.

• Can a BX169 gasket replace an RX or R ring gasket?

No. BX, RX, and R gaskets have different profiles and flange compatibility requirements. Always use the gasket type specified for the mating flange groove.

• What inspections should be requested when purchasing a BX169 gasket?

Common requirements include dimensional inspection, material certification and traceability, hardness verification, visual inspection, and PMI when specified. The exact inspection scope should be agreed upon in the purchase order.
