The Corrosion Challenge in Offshore Seawater

Seawater systems on offshore platforms, FPSOs and coastal plants operate under a combination of stressors that destroy conventional materials:

Chlorides (~19,000 ppm Cl⁻): drive pitting and crevice corrosion at weld seams, flange faces and under deposits.

Residual chlorine (0.5–2.0 ppm): added for biofouling control - but it sharply raises risk for low-PREN grades.

Stress Corrosion Cracking (SCC): austenitic grades such as 304/316 are vulnerable; chloride SCC is a primary failure mode.

Crevice corrosion: stagnant zones and gasket surfaces become local anodes once the crevice temperature is exceeded.

Erosion & velocity: cooling and injection lines see high flow; only high-hardness alloys survive long term.

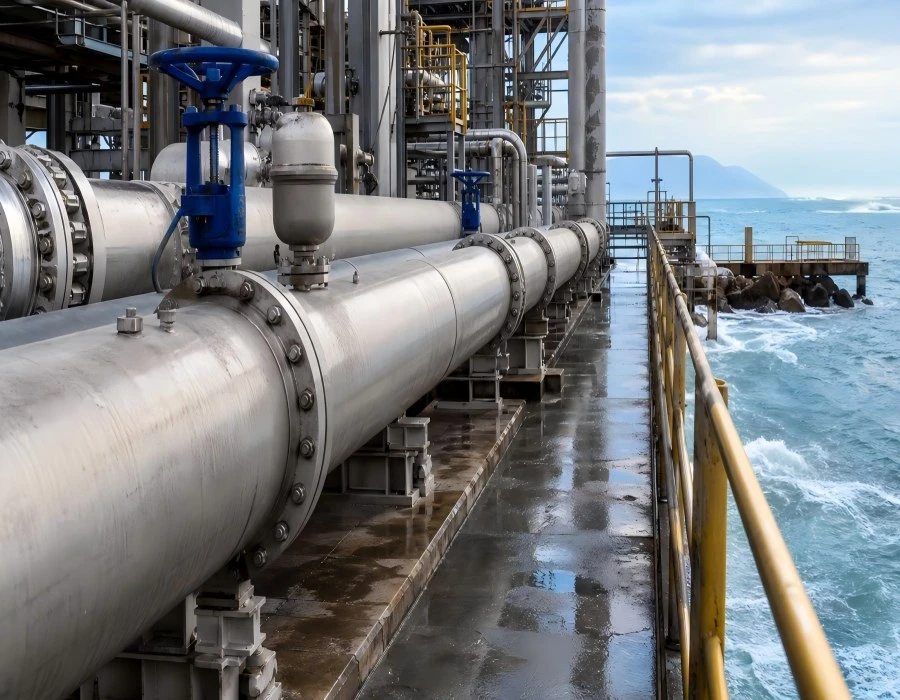

Super Duplex 2507 steel pipe for seawater

Why Super Duplex 2507

Super Duplex 2507 is a 25% chromium, 4% molybdenum, 7% nickel ferritic-austenitic (duplex) stainless steel whose balanced two-phase microstructure gives it both the corrosion resistance of high-alloy austenitics and roughly twice the strength of 316L. Its PREN of 41–43 places it firmly above the seawater threshold.

Chemical Composition (ASTM A789 / A790, UNS S32750)

Element	C	Mn	Si	P	S	Cr	Ni	Mo	N	Cu	Fe
S32750 (2507)	≤0.030	≤1.20	≤0.80	≤0.035	≤0.020	24.0–26.0	6.0–8.0	3.0–5.0	0.24–0.32	≤0.50	Bal.

Mechanical Properties

Property	Super Duplex 2507 (S32750)
Tensile Strength, min	795 MPa (115 ksi)
Yield Strength, min	550 MPa (80 ksi)
Elongation, min	15%
Hardness, max	319 HBW
Relative to 316L yield	≈ 3.2× (316L ≈ 170 MPa)

Corrosion Performance

Corrosion Metric	Super Duplex 2507	Note
PREN (Cr+3.3Mo+16N)	≥42 (typ. 41–43)	Seawater pitting threshold = PREN >40
CPT (Critical Pitting Temp)	50–60°C (ASTM G150)	316L only 15–20°C
CCT (Critical Crevice Temp)	35–40°C	Flange faces protected by design
Max Cl⁻ tolerance	>10,000 ppm	Seawater ≈ 19,000 ppm - fully suitable
General corrosion rate	<0.01 mm/year	North Sea: zero wall loss after 11 yr
Service life (bare, no CP)	25+ years	No coating or cathodic protection needed

Head-to-Head: 2507 vs Other Seawater Pipe Materials

Material	Corrosion	Chloride	Strength	Temp	Service Life	Rel. Cost	Verdict
Carbon Steel (A106 B + coating + CP)	Poor	Poor	Excellent	Medium	2–10 yr*	1.0×	No
316L (S31603)	Moderate	Moderate	Medium	Medium	5–15 yr	Medium	Limited
Duplex 2205 (S32205)	Good	Good	High	High	20–30 yr	3.5–4.5×	Yes
Super Duplex 2507 (S32750)	Excellent	Excellent	Very High	High	30+ yr	5.0–6.0×	Best Choice
254 SMO / 6Mo (S31254)	Excellent	Excellent	Medium	High	30+ yr	High	Yes
Titanium Gr.2 (R50400)	Outstanding	Outstanding	Medium	High	40+ yr	12–15×	Premium
Inconel 625 (N06625)	Outstanding	Outstanding	High	Very High	40+ yr	Very High	Special

Super Duplex 2507 vs 6Mo (254 SMO) - The Key Topside Decision

Property	Super Duplex 2507	6Mo (254 SMO)
UNS Grade	S32750	S31254
Typical Name	SAF 2507 / F53	254 SMO / 6Mo
Structure	Duplex (≈50% ferrite/austenite)	Super-austenitic
Cr	24–26%	19.5–20.5%
Ni	6–8%	17.5–18.5%
Mo	3–5%	6–6.5%
N	0.24–0.32%	0.18–0.22%
PREN	≥42	~43–45
Yield Strength	~550 MPa min	~300 MPa min
Density	Lower	Higher
Cost	Usually lower	Usually higher

Super Duplex 2507 steel pipe for seawater

Five Reasons 2507 Wins for Seawater Piping

Above-threshold PREN (≥42): eliminates pitting and crevice corrosion in chlorinated seawater where 316L fails in 2–5 years.

Inherent SCC resistance: the duplex microstructure is far more resistant to chloride stress corrosion cracking than austenitic grades.

High strength → thinner walls: at ~550 MPa yield (≈3.2× 316L), 2507 cuts material weight and weld volume - lowering both capex and installation cost.

No coating or cathodic protection: bare 2507 delivers 25+ year service life (North Sea field: zero wall loss after 11 years), removing a major OPEX line item.

Best value in the mid-cost band: 5–6× carbon steel vs 12–15× titanium, with equivalent or better corrosion performance for bulk piping.

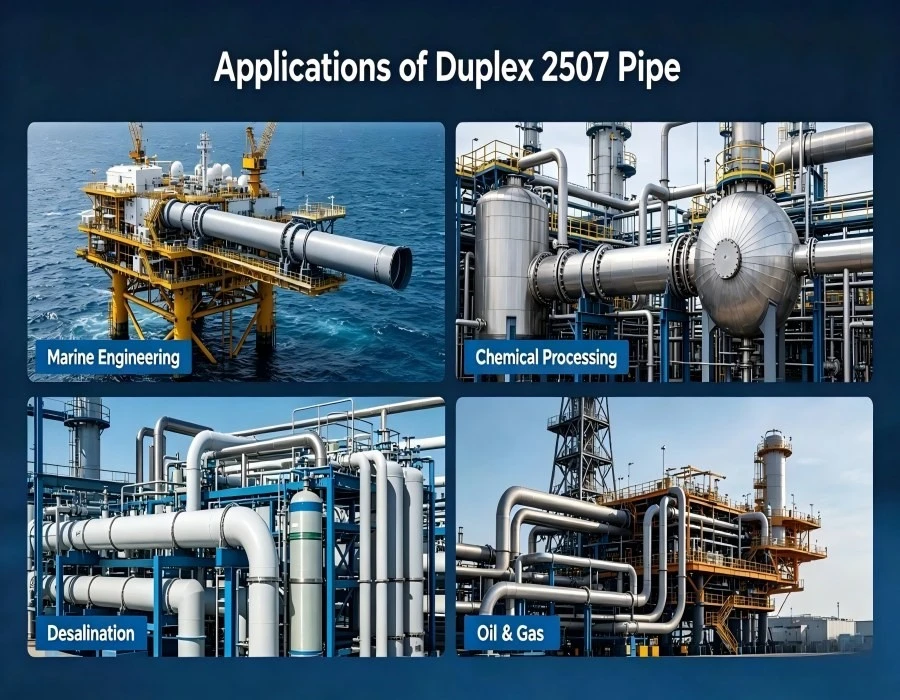

Where 2507 Is Specified Offshore

Bulk & topside seawater piping - cooling, firewater, injection lines (bare, uncoated).

Seawater heat-exchanger tubes - per ASTM A789, where both strength and corrosion resistance are required.

Desalination (SWRO) high-pressure piping - resists brackish/chlorinated streams.

Subsea and platform risers / manifolds - general service where titanium is not justified.

Flanges & fittings - ASTM A182 F53 / A815, fully matched to the pipe chemistry.

Standards & Product Forms

Product Form	Standard
Seamless Pipe	ASTM A790
Welded Pipe	ASTM A928
Tube	ASTM A789
Plate	ASTM A240
Flange	ASTM A182 Gr. F53
Fittings	ASTM A182 / A815

How to Choose a Reliable 2507 Supplier

Certified chemistry & PREN: Mill Test Certificate with verified Cr/Mo/N and computed PREN ≥ 42.

Phase balance control: ferrite content 35–65% to guarantee weldability and SCC resistance.

Full standard coverage: A790 / A789 / A928 / A182 - pipe, tube, plate, flange and fittings from one source.

Project references: proven offshore / desalination supply record and third-party inspection (EN 10204 3.1/3.2).

Contact now

FAQ

Q: Is Super Duplex 2507 better than 2205 for seawater?

Yes for aggressive service. 2205 (PREN 34–36) suits less-chlorinated, lower-temperature duty; 2507 (PREN ≥42, CPT 50–60°C) is required where chlorinated seawater and higher temperatures are present.

Q: Can 2507 replace 6Mo (254 SMO) to save cost?

In most topside seawater piping, yes - 2507 matches 6Mo pitting resistance at higher strength and lower cost. Choose 6Mo only when extreme formability or very high PREN is mandated.

Q: Does 2507 need cathodic protection or coating?

No. Bare 2507 achieves 25+ year life in seawater without CP or coating - a major lifecycle-cost advantage.

Q: Is NACE MR0175 / ISO 15156 required?

Pure seawater piping does not require it. If injection lines may see produced water / H₂S, qualify per NACE MR0175.
