Why Elbows Fail First in Seawater Lines

1.The Premise: An Elbow Is Not a Commodity Item

Most projects treat a fitting as an accessory to the pipe. Material follows the pipe, wall thickness follows the schedule, and purchasing checks the dimensions against ASME B16.9 before releasing the order. In carbon steel or a 304/316 system that approach rarely causes trouble. In seawater, chloride process water or sour gas, the cost tends to surface three to five years after start-up.

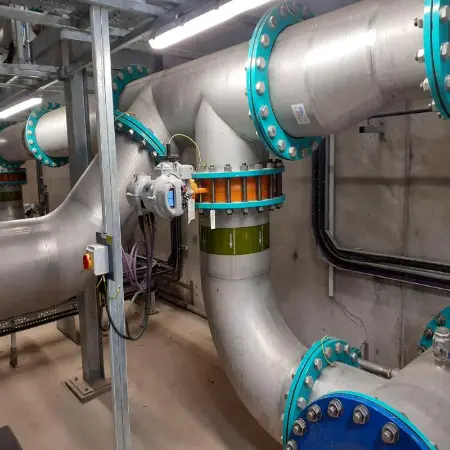

An elbow does not see the same service as the straight run. The flow is forced to turn: the extrados takes the impingement, the intrados takes the impact, and local velocity can run 1.5 times the straight-pipe figure or higher. Forming thins the extrados and thickens the intrados, leaving an uneven residual stress field. The two girth welds at either end are among the hardest joints in the system to control for heat input. Corrosion at this location is amplified three ways: velocity, stress and geometry.

That explains a pattern repeated across seawater systems: ultrasonic readings on the straight runs come back clean, while the extrados of the elbows shows dense pitting, sometimes through-wall. The material was not defective. The selection process checked medium and temperature, but never checked location and duty.







2. What S32760 Is - and How It Differs from 2507

S32760 is the UNS designation for a tungsten- and copper-bearing super duplex stainless steel. It is sold as ZERON® 100, specified in Europe as 1.4501 (X2CrNiMoCuWN 25-7-4), in ASTM forging grades as F55, and for wrought fittings as ASTM A815 Grade WPS32760. The solution-annealed structure is roughly 50/50 austenite and ferrite.

The confusion almost always concerns 2507. 2507 is UNS S32750, Werkstoff 1.4410, and contains no deliberate tungsten or copper addition. The two grades are close in strength and closely matched in seawater pitting resistance, but they diverge in two specific directions:

3. Three Points That Are Commonly Miscalculated

3.1 PREN is not a fixed number

The standard pitting resistance equivalent calculation is Cr + 3.3 × (Mo + 0.5W) + 16N. For a tungsten-bearing grade the W term must be included, otherwise the result understates the alloy. On nominal chemistry S32760 lands around 42–43. The specification requires only ≥ 40, and that figure is a per-heat guarantee carried on the mill certificate.

The practical problem is commercial: some suppliers quote the typical value of 43 as if it were a guarantee, and the delivered heats come in at 40.2. Where a project specifies PREN ≥ 41 or ≥ 42, the purchase order must state that the measured value for each heat* is to be recorded on the EN 10204 3.1 certificate. Without that wording, the requirement cannot be enforced.

3.2 Hardness is a free indicator of heat-treatment quality

ASTM A815 caps hardness for S32760 fittings at 270 HBW. Note that it is not 310 HBW - that limit belongs to S32750, and is misquoted in a great deal of published material. The number matters less as a strength figure than as circumstantial evidence of sigma phase.

Held in the 600–1000 °C window, the ferrite in S32760 decomposes into sigma phase, carbides and nitrides. Hardness rises, toughness falls sharply and corrosion resistance degrades at the same time. Solution treatment at 1100–1140 °C followed by an immediate water quench is what prevents this. If the quench is too slow, the charge is too large, or air cooling is substituted, hardness will exceed the limit. So a fitting reading 260–270 HBW should trigger an ASTM A923 Method C test, not just another tensile test.

3.3 Extrados thinning has to be checked separately

Hot-pressed or cold-formed elbows are thinner at the extrados than the parent pipe. The ASME B16.9 tolerance is widely read as "minimum wall satisfied, therefore acceptable" - but corrosion allowance is calculated from nominal wall. In high-corrosion-rate seawater duty, a 10% reduction in wall does not mean a 10% reduction in life; the remaining section has to carry internal pressure and corrosion allowance at the same time.

A technical agreement should state that the measured minimum wall at the extrados is not less than 87.5% of the parent pipe nominal wall, with a wall-thickness survey drawing supplied with the goods. The clause costs almost nothing and eliminates a large share of substandard supply.

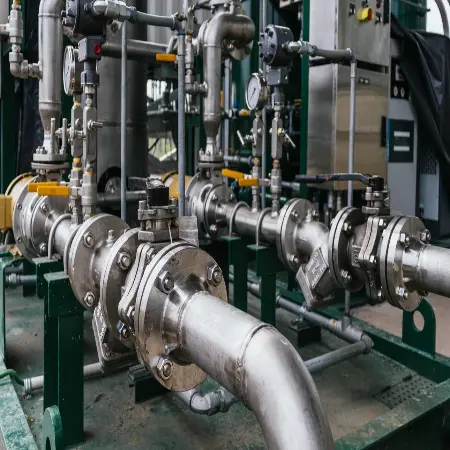

4. Welding: Where Service Life Is Actually Decided

A significant proportion of super duplex failures originate not in the parent metal but in the weld or the heat-affected zone, where phase balance has drifted. Three parameters belong in the WPS, not in the welder's judgement on the day:

▪ Filler matching. ER2594 / E2594 for GTAW and SMAW. A nickel-base consumable such as ER NiCrMo-3 (Alloy 625) may be used at the root where maximum corrosion resistance is required, accepting that weld strength falls below parent metal.

▪ Heat input and interpass temperature. Keep heat input low (typically 0.5–1.5 kJ/mm for GTAW) and cap interpass at 150 °C. Excessive input gives too much ferrite and nitride precipitation; too little leaves insufficient austenite.

▪ Nitrogen in the purge. Add 2–3% nitrogen to the backing gas to suppress austenite depletion at the root. A pure argon purge tends to leave a ferrite-rich root band, which becomes the pitting initiation site.

One point is widely misunderstood: is post-weld solution annealing mandatory? Normally not. The low-carbon, high-nitrogen design keeps the as-welded phase balance close to acceptable. But if a project requires stress relief, it must not be performed in the 600–900 °C range - that manufactures sigma phase deliberately and is worse than doing nothing. Either perform a full solution anneal with a rapid quench, or explicitly omit the treatment.

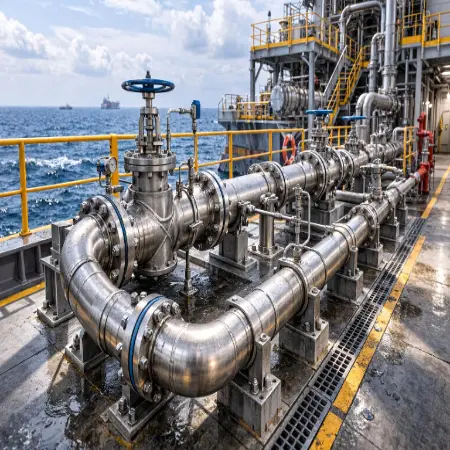

5. Closing

S32760 is not "a better 316L", and it is not "a dearer 2507". Its value boundary is precise: tungsten for crevice corrosion, copper for reducing acids, high nitrogen and low carbon for as-welded phase balance. Outside that boundary the premium is wasted. Inside it, every yuan saved on material is returned at the first unplanned shutdown.

The elbow is the point in the line where stress and flow field are most complex, which is exactly why it needs to be specified as a component rather than as a material. Once the check moves from "medium" to "medium plus location plus manufacturing process", most of the recurring failures turn out to have been avoidable at the drawing stage.
